Sound Mover - Marc Marc

SAT Amplifiers

Input mixer Power Amps Power supply Power monitor

Grounding Construction Trafo uni t

Back to Sound Mover block diagram

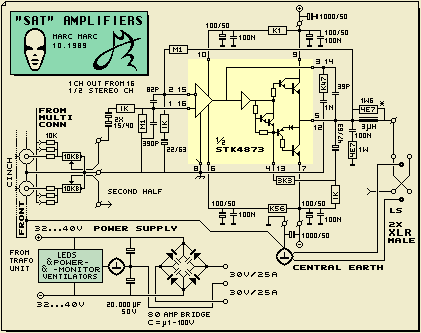

In general The SAT Amplifier unit counts 16 x 40/80 Watts amplifiers (8x stereo hybrid module) and thus 16 loudspeakers can be attached to this unit to serve the concept of sound choreography. The unit is build very compact (20x20x35 Cm). It is constructed as one big heat sink from thick aluminum. The power supply is shared by all amplifiers. The large transformer to power the amplifiers was built as a separate unit.
